Preformed Direct Burial Loops - 60' Of Lead-In
Preformed Direct Burial Loops - 60' Of Lead-In
Regular price
$89.25
Regular price
Sale price
$89.25
Unit price
/
per
Couldn't load pickup availability

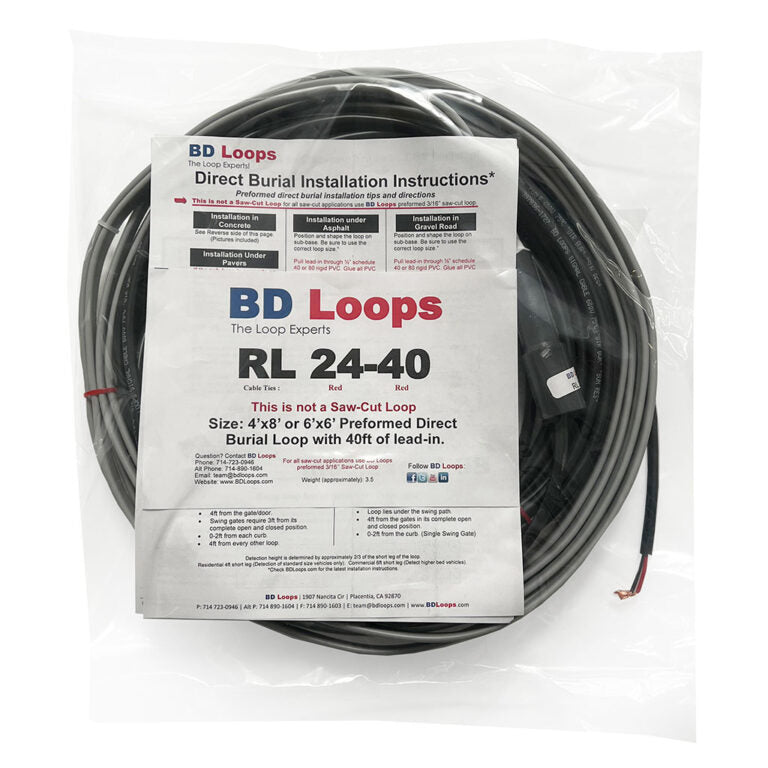

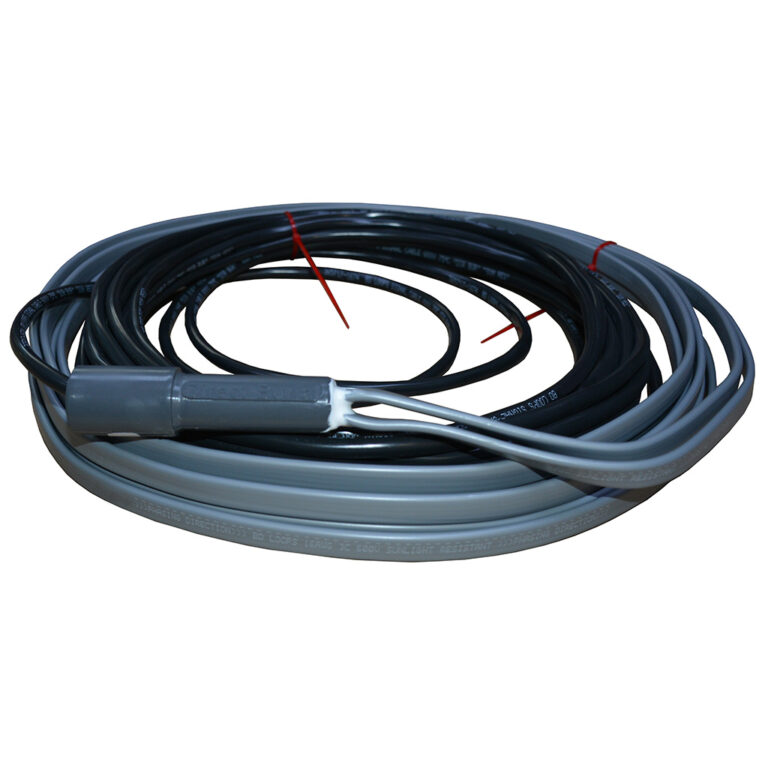

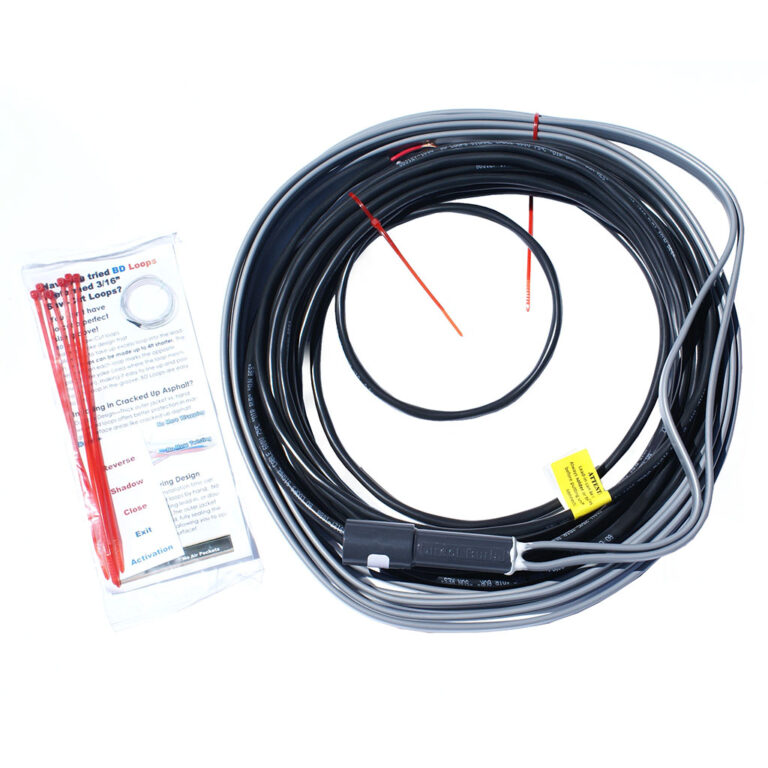

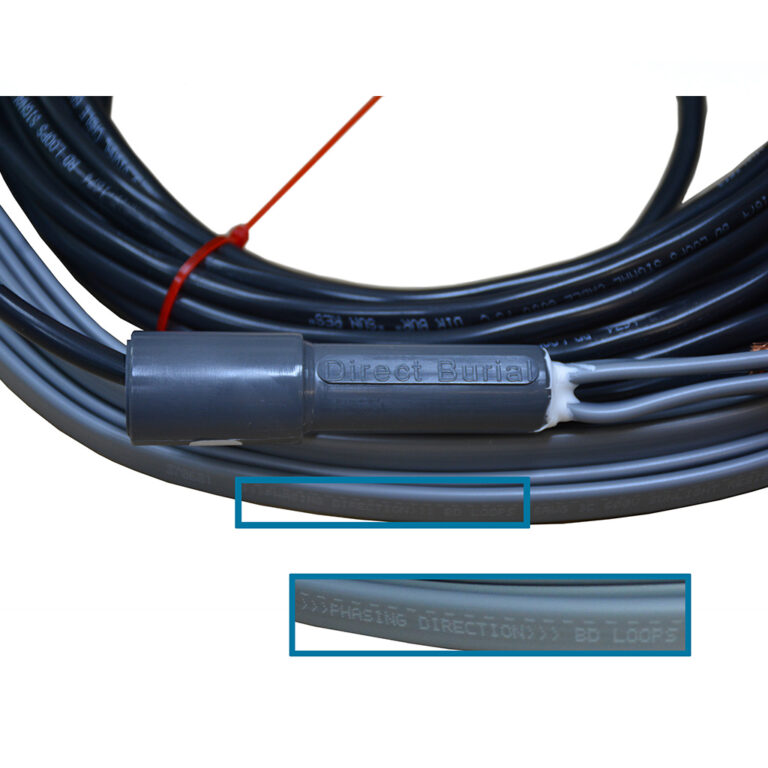

BD Loops Preformed Direct Burial Inductance Loops are a complete loop with a set size loop and length of lead-in run. Our Direct Burial Loops have an extra layer of protection: a durable outer jacket that protects and tightly binds the inner conductors. All BD Loops are made with 16 AWG copper wire and rated for direct burial use.
Uses
Used for direct burial applications such as in concrete pours, asphalt paving, gravel roads, dirt roads, or under pavers.
| Part# | Description |
| EL 14-60 | 2½’ x 4½’ or 3’ x 4’ loop with a 60’ lead-in. |
| EL 16-60 | 3’x 5’ or 4’ x 4’ loop with a 60’ lead-in. |
| EL 18-60 | 3’ x 6’ or 4’x 5’ loop with a 60’ lead-in. |
| EL 20-60 | 3’ x 7’ or 4’ x 6’ loop with a 60’ lead-in. |
| EL 24-60 | 4’ x 8’ or 6’ x 6’ loop with a 60’ lead-in. |
| EL 28-60 | 4’ x 10’ or 6’ x 8’ loop with a 60’ lead-in. |
| EL 32-60 | 4’ x 12’ or 6’ x 10’ loop with a 60’ lead-in. |
| EL 36-60 | 6’ x 12’ loop with a 60’ lead-in. |
| EL 40-60 | 6’ x 14’ loop with a 60’ lead-in. |
| EL 44-60 | 6’ x 16’ loop with a 60’ lead-in. |
| EL 52-60 | 6’ x 20’ loop with a 60’ lead-in. |
