BD Loops
Preformed 3/16″ Saw-Cut Loops-50′ Of Lead-in
Preformed 3/16″ Saw-Cut Loops-50′ Of Lead-in
Regular price
$162.78
Regular price
Sale price
$162.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

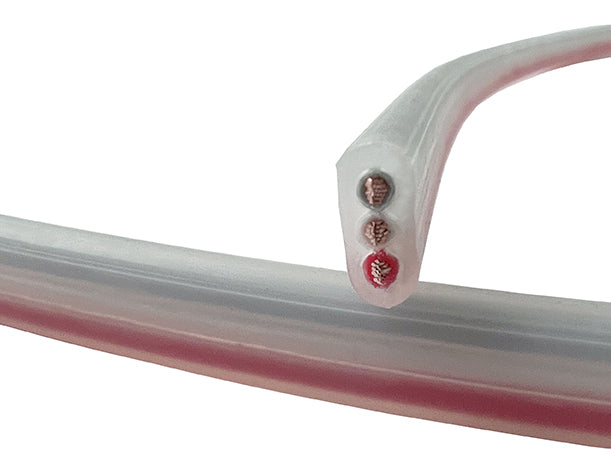

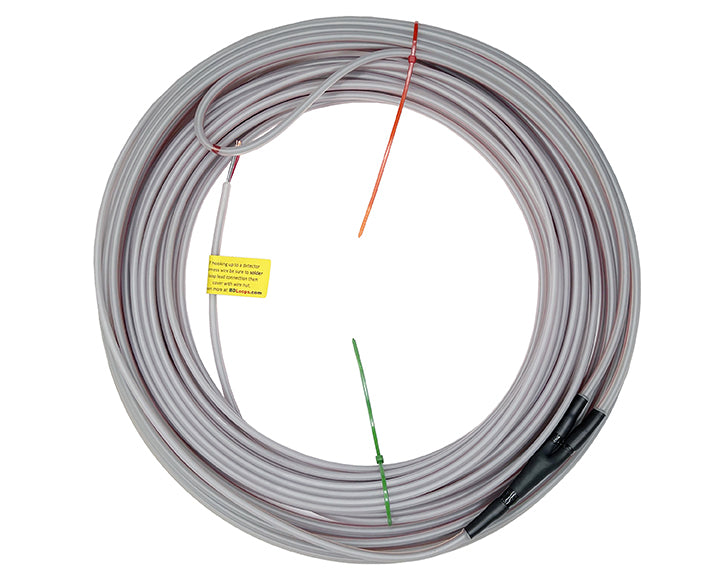

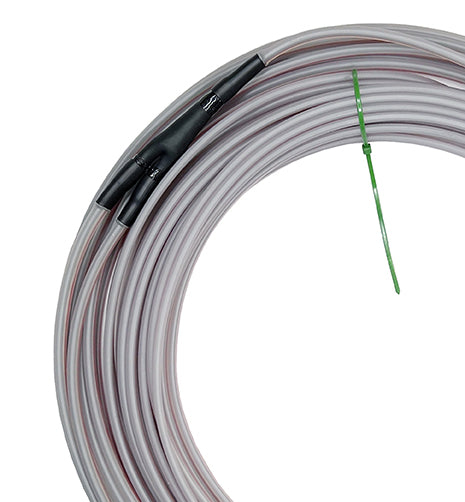

BD Loops Preformed Saw-Cut Inductance Loops are a complete loop with a set size loop and length of lead-in run. Our Saw-Cut Loops have an extra layer of protection: a durable outer jacket that protects and tightly binds the inner conductors. All BD Loops are made with 16 AWG copper wire and rated for direct burial use.
Uses
For saw-cut installations where a 3/16” or wider slot is cut into the concrete or asphalt and the loop wire is stuffed into the saw-cut slot and sealed with loop sealant.
50′ Of Lead-in
| Part# | Description |
| SC 14-50 | 2½’x4½’ or 3’x4’ loop with a 50’ lead-in. |
| SC 16-50 | 3’x5’ or 4’x4’ loop with a 50’ lead-in. |
| SC 18-50 | 3’x6’ or 4’x5’ loop with a 50’ lead-in. |
| SC 20-50 | 3’x7’ or 4’x6’ loop with a 50’ lead-in. |

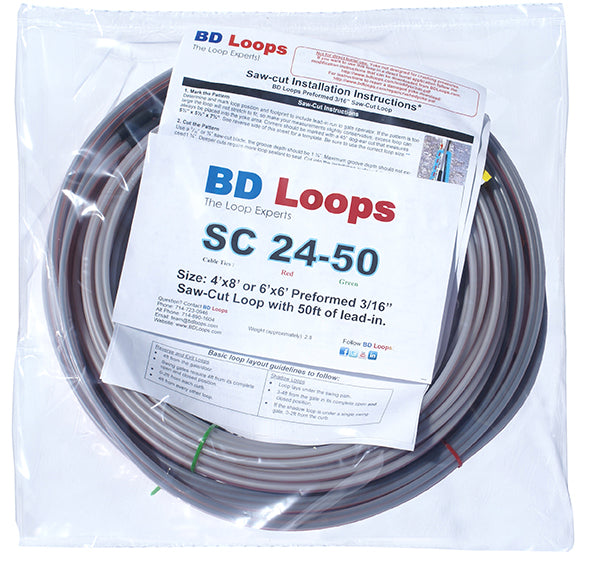

| SC 24-50 | 4’x8’ or 6’x6’ loop with a 50’ lead-in. |
| SC 28-50 | 4’x10’ or 6’x8’ loop with a 50’ lead-in. |
| SC 32-50 | 4’x12’ or 6’x10’ loop with a 50’ lead-in. |
| SC 36-50 | 6’x12’ loop with a 50’ lead-in. |
| SC 40-50 | 6’x14’ loop with a 50’ lead-in. |
| SC 44-50 | 6’x16’ loop with a 50’ lead-in. |
| SC 52-50 | 6’x20’ loop with a 50’ lead-in. |
