Preformed 3/16″ Saw-Cut Loops-20′ of Lead-in

$140.68

Sale Sold out

Shipping calculated at checkout.

20′ of Lead-in SC 14-20 SC 16-20 SC 18-20 SC 20-20 SC 24-20 SC 32-20 SC 36-20 SC 44-20 SC 52-20

Quantity

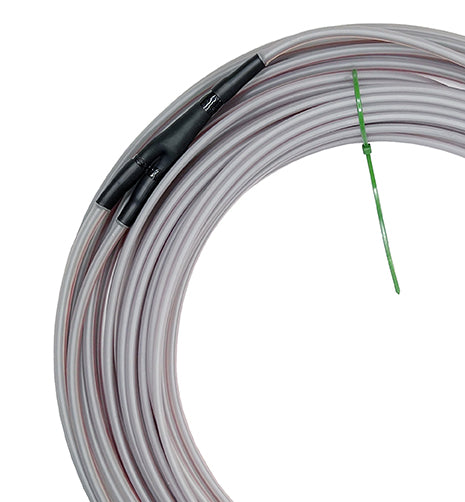

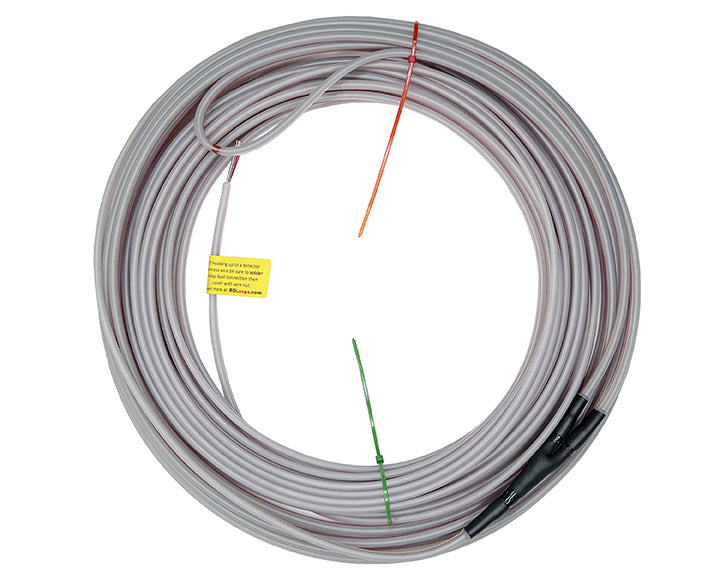

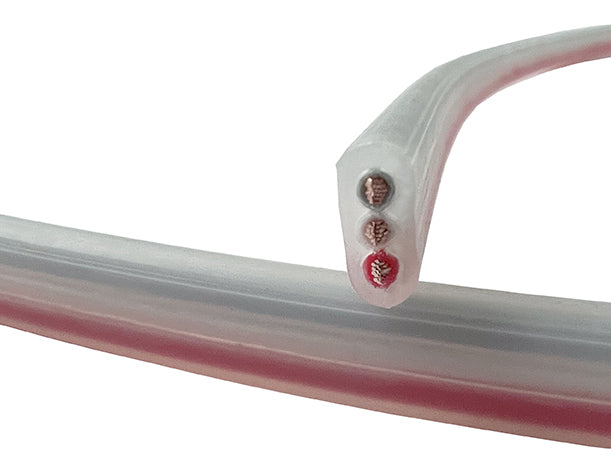

BD Loops Preformed Saw-Cut Inductance Loops are a complete loop with a set size loop and length of lead-in run. Our Saw-Cut Loops have an extra layer of protection: a durable outer jacket that protects and tightly binds the inner conductors. All BD Loops are made with 16 AWG copper wire and rated for direct burial use.

Uses

For saw-cut installations where a 3/16” or wider slot is cut into the concrete or asphalt and the loop wire is stuffed into the saw-cut slot and sealed with loop sealant.

Standard Loop Sizes

20′ of Lead-in

Part#	Description
SC 14-20	2½’x 4½’ or 3’x 4’ loop with a 20’ lead-in.
SC 16-20	3’x 5’ or 4’x 4’ loop with a 20’ lead-in.
SC 18-20	3’x 6’ or 4’x 5’ loop with a 20’ lead-in.
SC 20-20	3’x 7’ or 4’x 6’ loop with a 20’ lead-in.
SC 24-20	4’x 8’ or 6’x 6’ loop with a 20’ lead-in.
SC 32-20	4’x 12’ or 6’x 10’ loop with a 20’ lead-in.
SC 36-20	6’x 12’ loop with a 20’ lead-in.
SC 44-20	6’x 16’ loop with a 20’ lead-in.
SC 52-20	6’x 20’ loop with a 20’ lead-in.
