What's in this Kit
CSW24UL 24VDC High Traffic Commercial Slide Gate Operator
Info CSW24UL High Traffic Commercial Swing Gate Operator ReliableBattery Backup...
Qty: 1

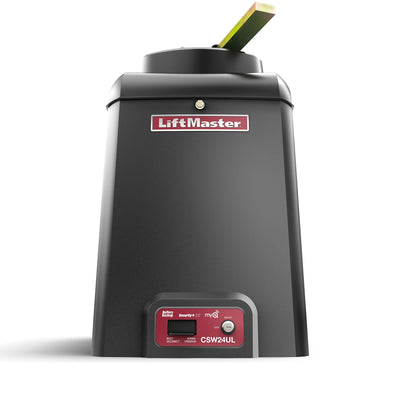

CSW24UL 24VDC High Traffic Commercial Slide Gate Operator
Info
CSW24UL High Traffic Commercial Swing Gate Operator
Reliable
Battery Backup provides seamless access by providing up to 146 cycles or 24 days of standby power when the power is down.
Smooth Start/Stop operation and mid-travel reversal extend operator hardware life.
Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away
Heavy-Duty Commercial Duty gear driven transmission provides unsurpassed reliability
Warranty 5 years commercial, 7 years residential
Smart
Powered by myQ® Technology enables you to securely control and monitor your gate operator from anywhere
Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs
Synchronized Close simultaneously closes gates
Safe and Secure
Security+ 2.0® safeguards access with an encrypted tri-band signal to virtually eliminate interference and offer extended range
Emergency Disconnect& simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged
Fire Department Compliance allows gate to auto-open upon loss of AC power or battery depletion
Quick Close and anti-tailgate quickly secure property, preventing unauthorized access
UL® Listed Gate operators with monitored safety entrapment protection devices
Included Accessories
LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; Maxium Range: 50 ft.
Specs
Mechanics
Motor: 24VDC Continuous Industrial-Duty
Operator Duty Rating: High-cycle, high-temperature commercial duty
Worm Gear Reduction: 2 commercial oil-bath gearboxes providing 900:1 Reduction
Power: 120/230VAC Single-Phase
Three-Phase Conversion Option: 3PHCONV converts input voltage of 208/230/460/575VAC to an output voltage of 120VAC
Accessory Power: 24VDC 500mA Max.
Solar: Compatible application dependent on region
Commercial Grade Design
Chassis: Constructed with 1/4 in. gold zinc-plated steel for rust prevention
Enclosure/Cover: high-density, UV-resistant polycarbonate 2-piece for heat and corrosion resistance
UL® Usage Classification: I, II, III and IV
Operator Weight: 206 lbs.
Dimensions
Height: 27.99”
Width: 19.63”
Depth: 15.55”
Temperature Specifications
Without Heater: -4°F (-20°C ) to 140°F (60°C)
With Heater Option: (HTR) -40°F (-40°C ) to 140°F (60°C)
Gate Travel: Speed Opens 90° in 13-15 seconds
Standard Features
Pre-Motion Warning Alarm activates on-board alarm 3 seconds prior to gate motion
Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses gate when opening
Bi-Part Delay monitors and adjusts speed and position of each wing to ensure primary gate closes last
Monitored Safety Inputs 3 main board, 3 expansion board
Security+ 2.0® Radio Receiver Tri-band 310/315/390 MHz frequency up to 50 remote controls (unlimited with 811LM/813LM)
LED Diagnostic Display simplifies installation and troubleshooting
Programmable Auxiliary Relays make adding additional features easy
HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
HomeLink® is a registered trademark of Gentex Corporation.
Resources
Qty in Kit: 1
Monitored Wireless Edge Kit
Performance Meets 2016 UL 325 requirements Innovative industry leading low-energy...
Qty: 1
Monitored Wireless Edge Kit
Performance
- Meets 2016 UL 325 requirements
- Innovative industry leading low-energy Bluetooth® transmission up to 130 ft. range
- Integrated Diagnostics with Gate Operator Speed Installation
- Protects up to 8 entrapment points
- Receiver accepts up to 4 transmitters
- Transmitter accepts up to 2 wired resistive edges
- Harness and connector included on receiver for ease of install
- Battery life 2 years
- NEMA 4X rated
- Easy to see LED indicators for instant feedback, receiver-power-edge contacted
- Receiver Integrates to diagnostics codes system on the operator
- Compatible with LiftMaster Gate Operators with Monitored Safety Inputs, LMWETXU Transmitter and L50 and S50 Monitored Resistive Edges
- Includes: wireless edge receiver and transmitter, 2 AA lithium batteries, harness and mounting hardware
Qty in Kit: 1
5 ft Small Profile Resistive Edge with Aluminum Channel
Fast and easy to install. Mounts vertically or horizontally. Meets...
Qty: 2
5 ft Small Profile Resistive Edge with Aluminum Channel
- Fast and easy to install.
- Mounts vertically or horizontally.
- Meets UL 325 Safety Standards.
Business Safety and Security
IP65 Rated
Mounts vertically or horizontally.
IP65 Rated.
Operating temperature -40C to +65C.
Meets UL 325 Safety Standards.
Qty in Kit: 2
LM Plug In Loop Detector
Features LM Plug In Loop Detector
Qty: 3
LM Plug In Loop Detector
Features
Qty in Kit: 3
Loop Preformed Saw Cut 6x12 (BD Loops)
By BD Loops Used in existing asphalt or concrete driveways...
Qty: 3
Loop Preformed Saw Cut 6x12 (BD Loops)
- By BD Loops
- Used in existing asphalt or concrete driveways
- 16ga. copper stranded wire
- Custom polyethylene outer jacket acts as a built-in backer rod to hold the loop to the bottom of the saw-cut groove
- Pre-phased at the factory
Qty in Kit: 3
Loop Sealant
Qty: 12
Loop Sealant
Qty in Kit: 12
CAPXS Smart Video Intercom - Small
Info LiftMaster Smart Video Intercom – S Designed with small...
Qty: 1
CAPXS Smart Video Intercom - Small
Info
Key Features:
Integrated wide-angle camera: Lets you view entrance through a live feed or recorded event.
Integrated BLE radio enabling myQ Mobile Credentials: Ultra-secure encrypted access with the resident’s smartphone.
Cloud-based security: Keeps data protected and safeguards residents’ information.
Intuitive high-definition display: Straightforward experience for community needs.
Robust diagnostic capabilities: Provides ability to detect and address issues before your residents are even aware.
myQ® Community app: Gives residents the ability to manage access from their smartphone thru the one-way video calling and two-way voice communication. Able to unlock a door remotely, send virtual guest passes, use Siri to unlock and with myQ mobile credentials, conveniently use their smartphone as their secure all-access pass to move throughout the building – no keyfobs or cards needed! Simply TAP the smartphone lightly on the Smart Video Intercom or get a push notification ALERT on your phone to unlock the door as you walk up to it.
135⁰ wide angle camera provides a view of entrance through a live feed or recorded event through the myQ Community web platform.
Receive alerts and HD video recordings when an access event is triggered.
Night vision functionality for greater image quality in high and low light environments.
Climate performance includes extreme climate operating range of -4⁰ to 122⁰F.
Customized system control with myQ Community* web platform
Streamline access management with myQ Community. Conveniently control and manage your residents access to the property
myQ mobile credentials provides an ultra-secure method of access for residents. Eliminate conventional credentials like pins, cards and keyfobs that can be shared or copied.
Cloud-based platform enables remote features such as adding/deleting residents and assigning access to specific entrances.
Set schedules for entry by person, time and location.
Configurable email notifications alert you to use of a suspended code, tell you when codes are overused or if service is needed for the Smart Video Intercom.
*All LiftMaster Smart Access Solutions (including CAPXLV, CAPXLV2, CAPXM, CAPXS, CAP2D, and CAPAC) require monthly subscriptions to a myQ Community plan. Contact your Dealer or LiftMaster Representative to tailor a subscription plan to fit your community's needs.
Gives residents the ability to manage property access from their smartphone.
myQ mobile credentials with a resident's smartphone provides an ultra-secure method of access for residents. With the Smart Video Intercoms, residents can either TAP their smartphone lightly on the Intercom screen to unlock a door or get a push notification ALERT on their smartphone to unlock their door as they walk up. With the Smart Readers, they can keep their phone in their pocket and just TOUCH the reader to gain entry.
Residents can safely identify guests and confidently grant/deny access from anywhere.
Residents can “press to unlock” any authorized door/gate for themselves or visitors (including using Siri to unlock the door).
Cloud-based security
Two factor authentication protects and safeguards resident data.
Easily connects to myQ Community to manage multiple entry points and properties from a single dashboard.
Meets California Consumer Privacy Act (CCPA) requirements for the myQ Community app.Conforms with the requirements of ISO/IEC 27001:2013.
Engineering and diagnostic capabilities
Fade resistant, high-definition color touch display.
Advanced self-diagnostics reduce downtime by troubleshooting and identifying when service is needed.
UL 294 listed for commercial settings.
Resources
Qty in Kit: 1
PED64 64" In-Ground Mount Pedestal
64" Gooseneck pedestalIn-ground mountMultiple hole configuration faceplate2" x 2" square...
Qty: 1
PED64 64" In-Ground Mount Pedestal
64" Gooseneck pedestal
In-ground mount
Multiple hole configuration faceplate
2" x 2" square post
Black powder-coated, weather-resistant finish
Ideal for installers who wish to save time by pouring cement and installing the pedestal in the same visit
Qty in Kit: 1
