BD Loops
BD-Megger Analog Loop Tester
BD-Megger Analog Loop Tester
Regular price
$168.30
Regular price
Sale price
$168.30
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

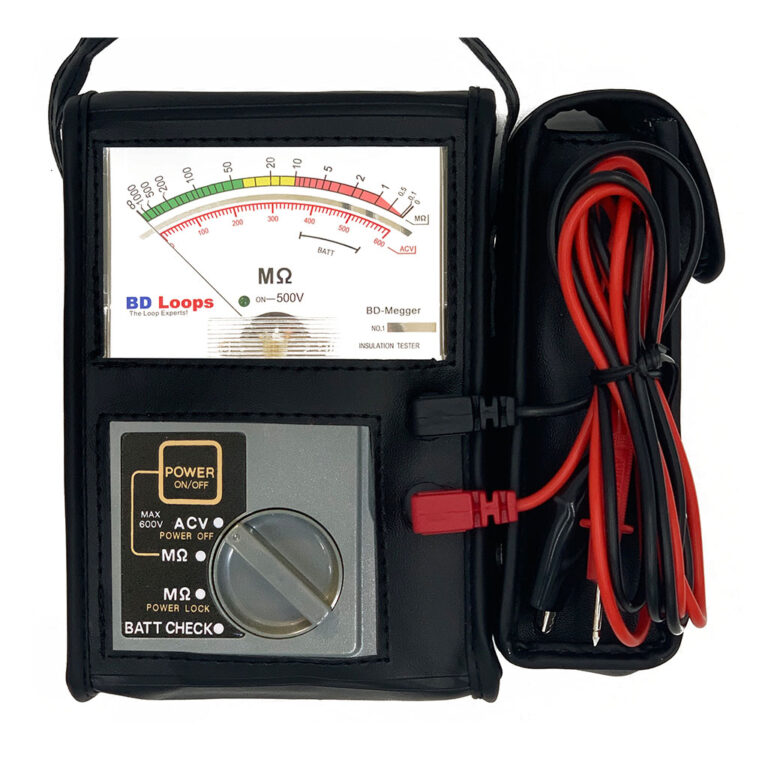

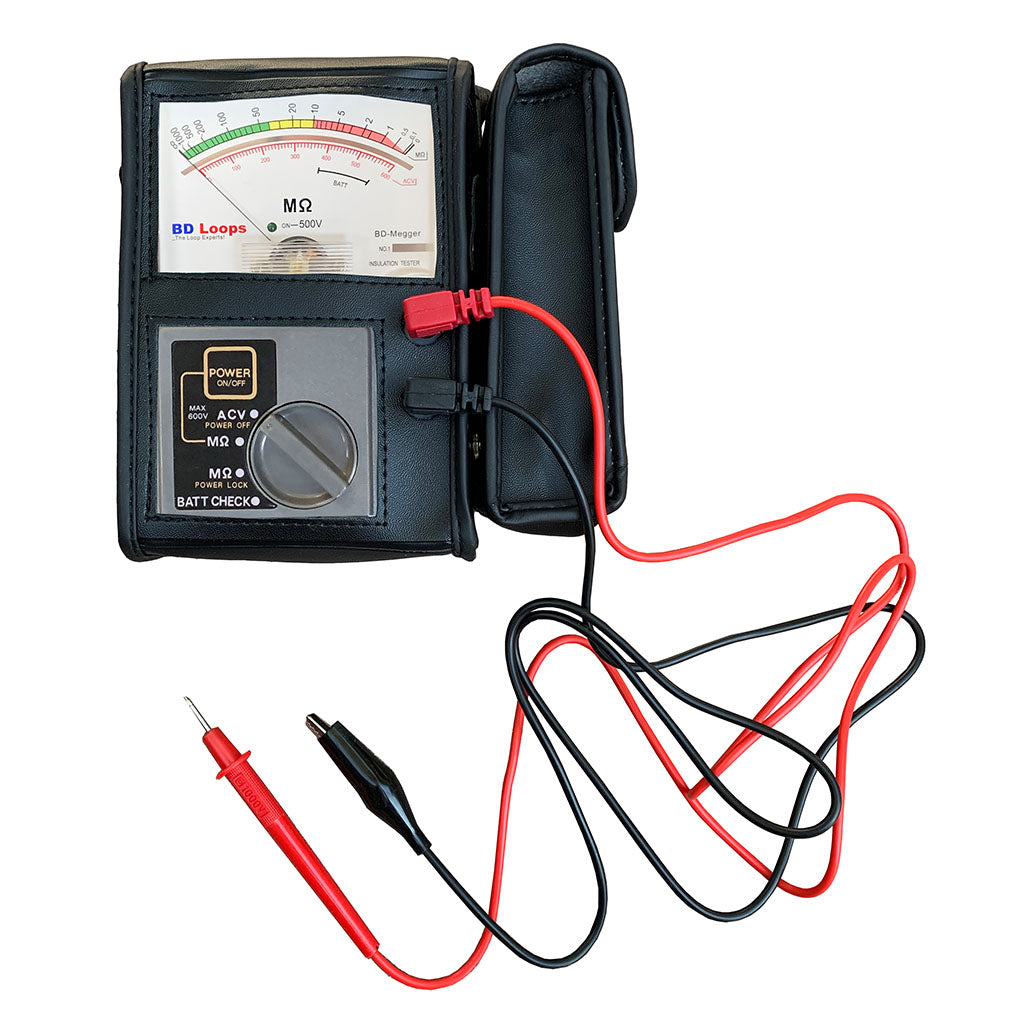

Analog Megohmmeter & AC Volt Meter with easy to read result gauge. Ideal for testing loop wire insulation.
Uses
Megohmmeters are the only meter than can test for the most common loop issue – a nick in the insulation (protective coating around the wire) causing the loop to short to ground. This is why they are referred to as “insulation testers”.
Technical Specs
| Rated Voltage | 500V |
| Resistance | 1000MΩ |
| Accuracy | ±5% arc |
| Out Voltage | ±10% rated |
| ACV | 0~600V |
| Accuracy | ±5% |
| Operating Conditions | 32-104°F (0-40°C) , 25%-80% RH |
| Power Source | 1.5V(R6) 4 pcs – AA Batteries |
Superior Features

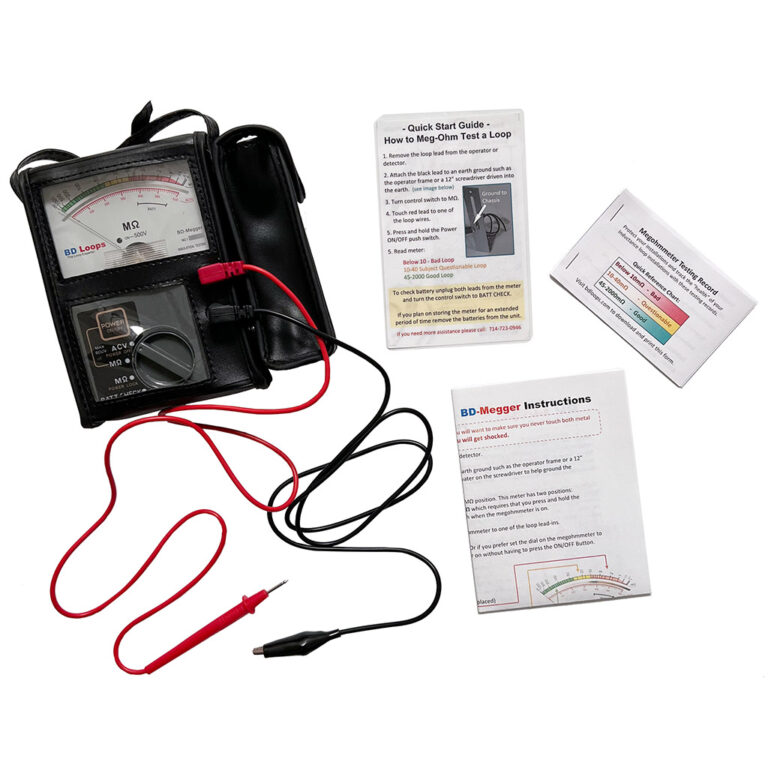

· Insulation Tester and Test Leads
· Easy to Read Color Coded Result Gauge
(Green=Good, Yellow=Questionable, Red=Bad)
· AC Volt Meter
· Battery Check Feature
· Power Lock Option for Continuous Testing
· Carrying Case
· Quick Start Instructions for Testing Loops
· In-depth Instructions for Testing Loops
· Testing Record Booklet
· Batteries Included
