BD Loops
3/16″ Pro Diamond Blades
3/16″ Pro Diamond Blades
Regular price
$399.50
Regular price
Sale price
$399.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

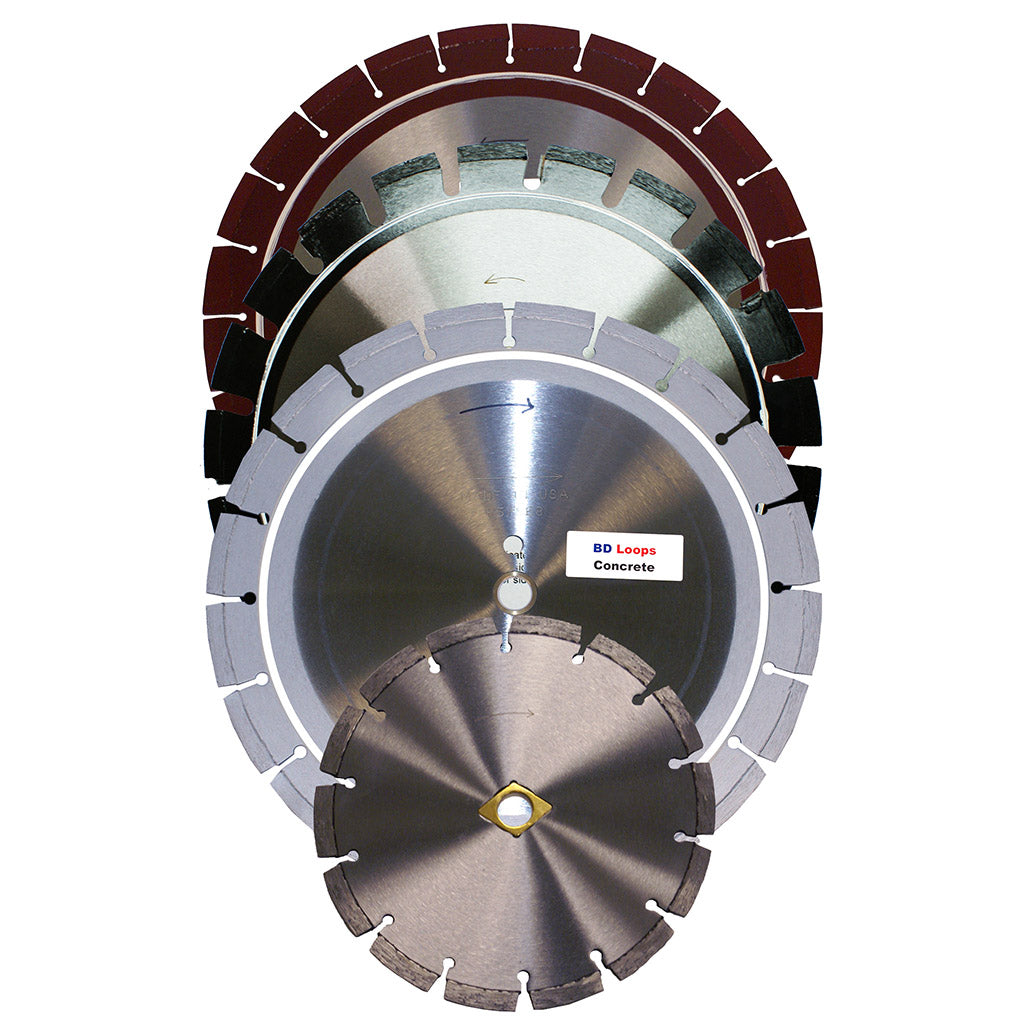

BD Loops offers a variety of high quality 3/16” wide blades in 14” and 7” diameters.
Uses
Used for cutting a 3/16” wide saw-cut slot in concrete or asphalt for saw-cut loop installation.
Techincal Specs
14″ Diameter Blades
| Blade Width | 3/16″ (.1875″) |
| Machine Horsepower | Up to 25 hp |
| Arbor Size | Round 3/4″ to 1″ (has knockout) |
| Pinhole | Yes |
| Spin Direction | Marked with Arrow |
| Asphalt Blade Part# | SB-A |
| Combo Blade Part# | SB-B |
| Concrete Blade Part# | SB-C |

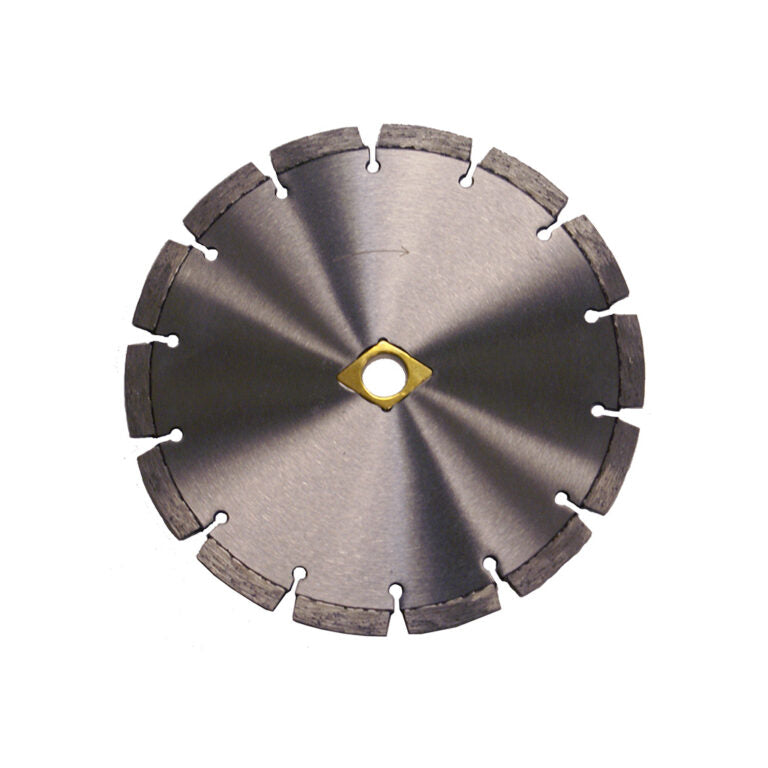

7″ Diameter Blade
| Blade Width | 3/16″ (.1875″) |
| For Use With | Handheld Skill Saws |
| Arbor Size | Worm Drive 5/8″ to 7/8″ (has knockout) |
| Pinhole | No |
| Spin Direction | Marked with Arrow |
| Concrete Blade Part# | SB-B7 |
Compare blades TO find THE best blade FOR you
| Blade Type | Diamond Bond | When Used in Asphalt | When Used in Concrete |

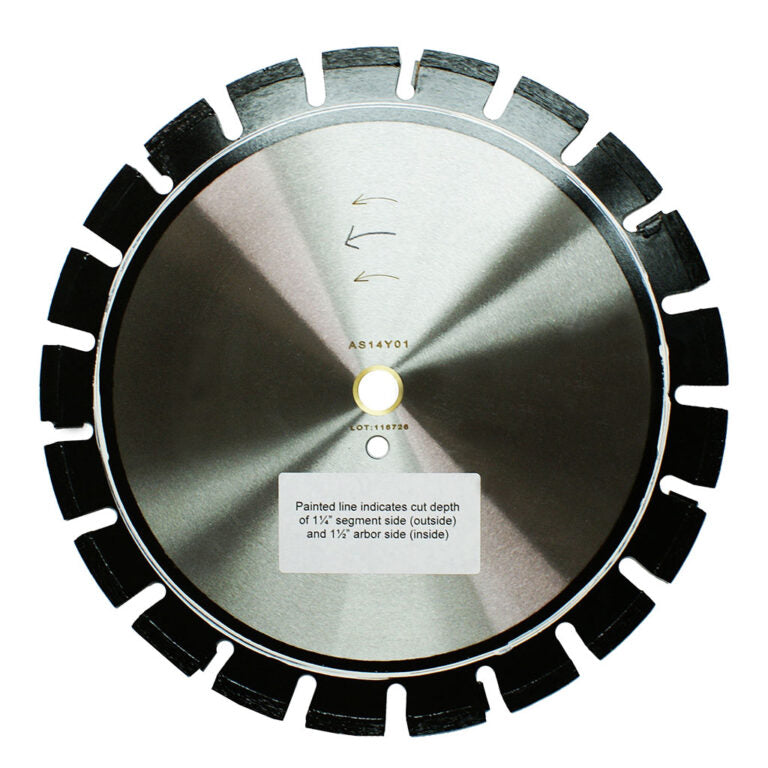

| Asphalt Part# SB-A |
Hard Bond |
The asphalt blade will have a long life and cut quickly because the hard bond will prevent the diamond layers from shedding quickly. |
Will cut slow and eventually glaze up and stop cutting. The blade will continue to be unusable until it is run through an asphalt surface to deglaze the blade. |

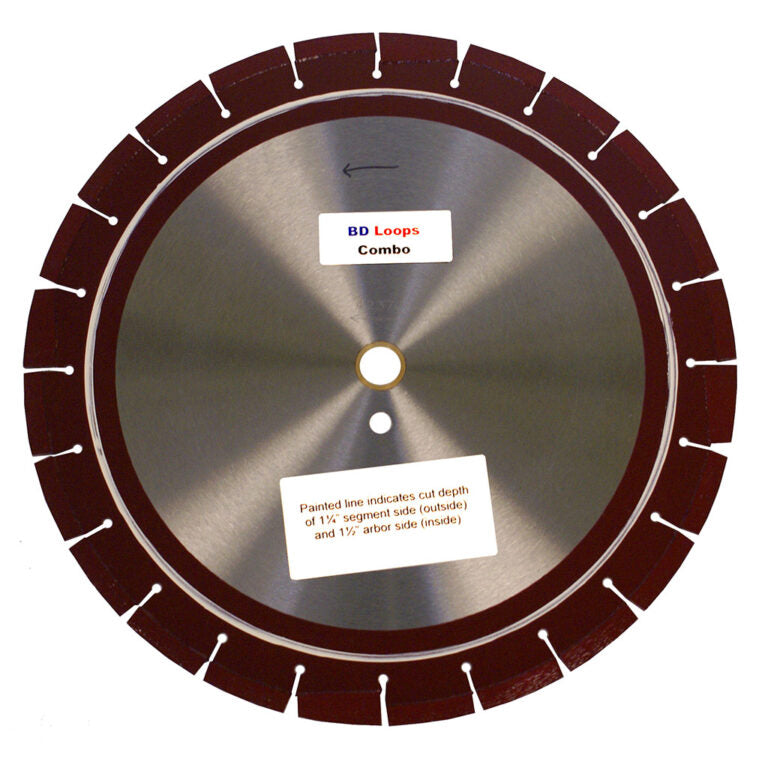

| Combo Part# SB-B |
Medium Bond | Will cut asphalt slightly quicker than the specialized asphalt blade but at the cost of reduced life of the blade. | Will cut concrete but not as quickly as the specialized concrete blade. |

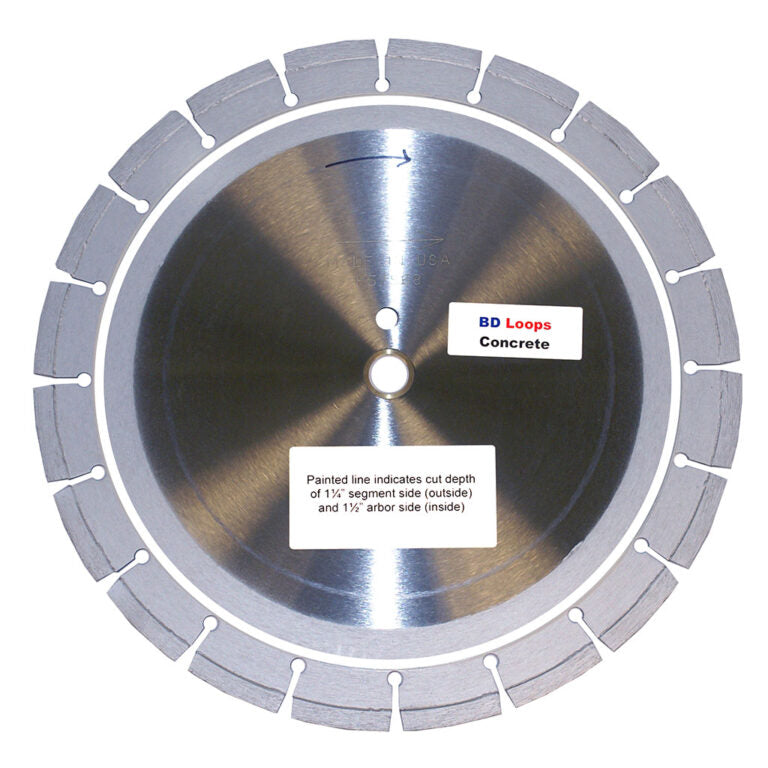

| Concrete Part# SB-C |
Soft Bond |
Will quickly cut asphalt surfaces but will cause the blade to wear down rapidly and drastically reduce the life of the blade by shedding diamonds prematurely. | The concrete blade will have a long life and cut quickly because the soft bond will allows the diamonds to always be open and ready for cutting. |
